Main Feature
Versatility:
small size, light weight, consistent installation ports for power supplies, easy to install and replace, wide application areas, and sell well at home and abroad.
Good compatibility:
it can perfectly match most of the 30W-150W CO2 lasers at home and abroad.
XA series:

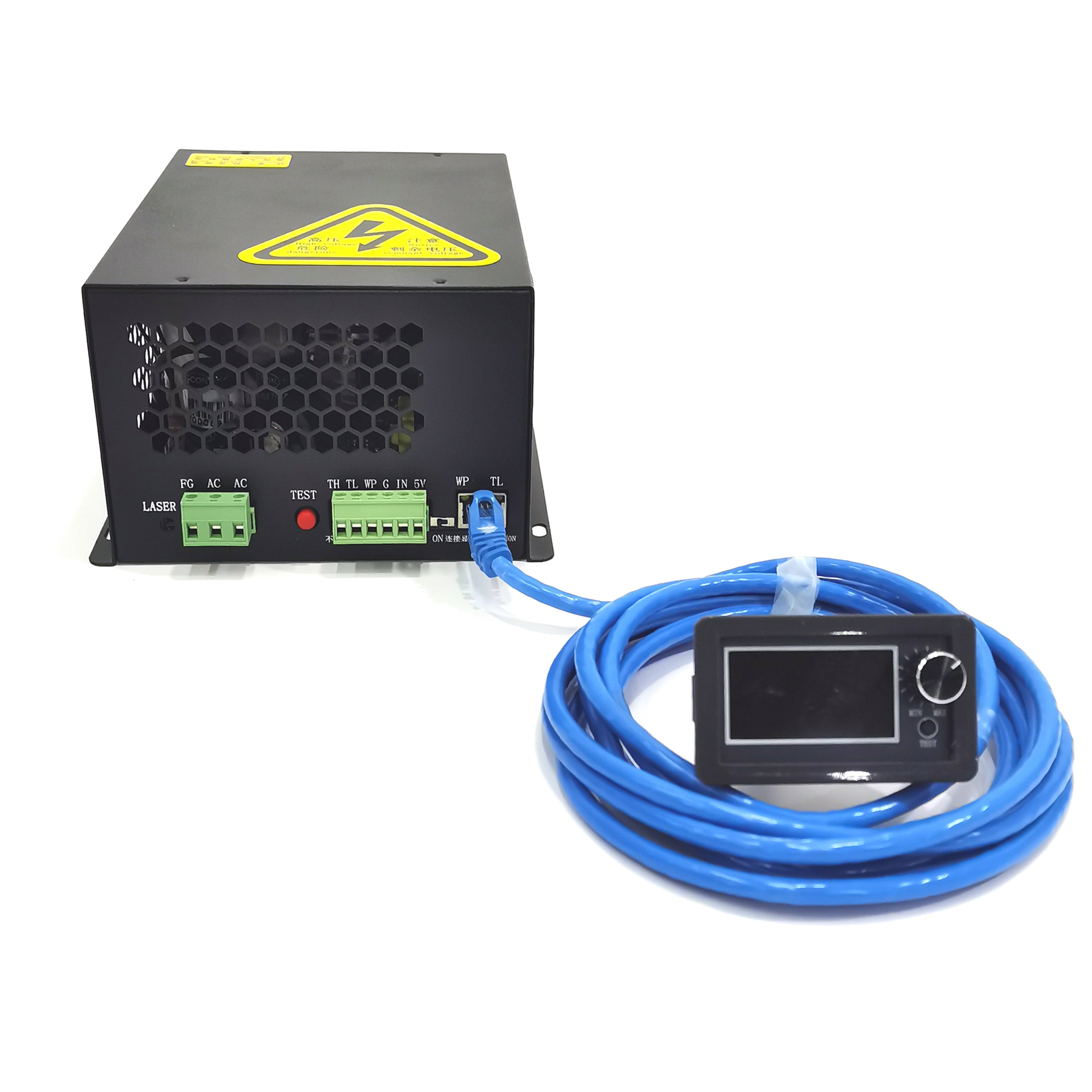

(1)Built-in liquid crystal display: digital display current size, light indicator, light signal, water protection signal can indicate normal and faulty signals, and the integrated potentiometer can manually adjust the current.
(2)The size of the mounting hole is the same:
the size of the opening of the LCD screen and the original pointer ammeter is the same, and there is no need to make a separate hole.
The safety of laser equipment is higher:
it has an open circuit protection function, which significantly prolongs the life of the power supply.
The laser power control is simple:
it can be controlled by 0~5V analog signal or 5V PWM signal.
The cutting machine and the engraving machine are compatible:
the cutting power is sufficient, the speed is fast; the engraving and marking effects are good, and the engraving bottom surface is smooth.
With test function:
The power supply has a manual light emission test function, which is convenient for customer maintenance on site.
Fault judgment:
With status indicator light, fault judgment is easy.

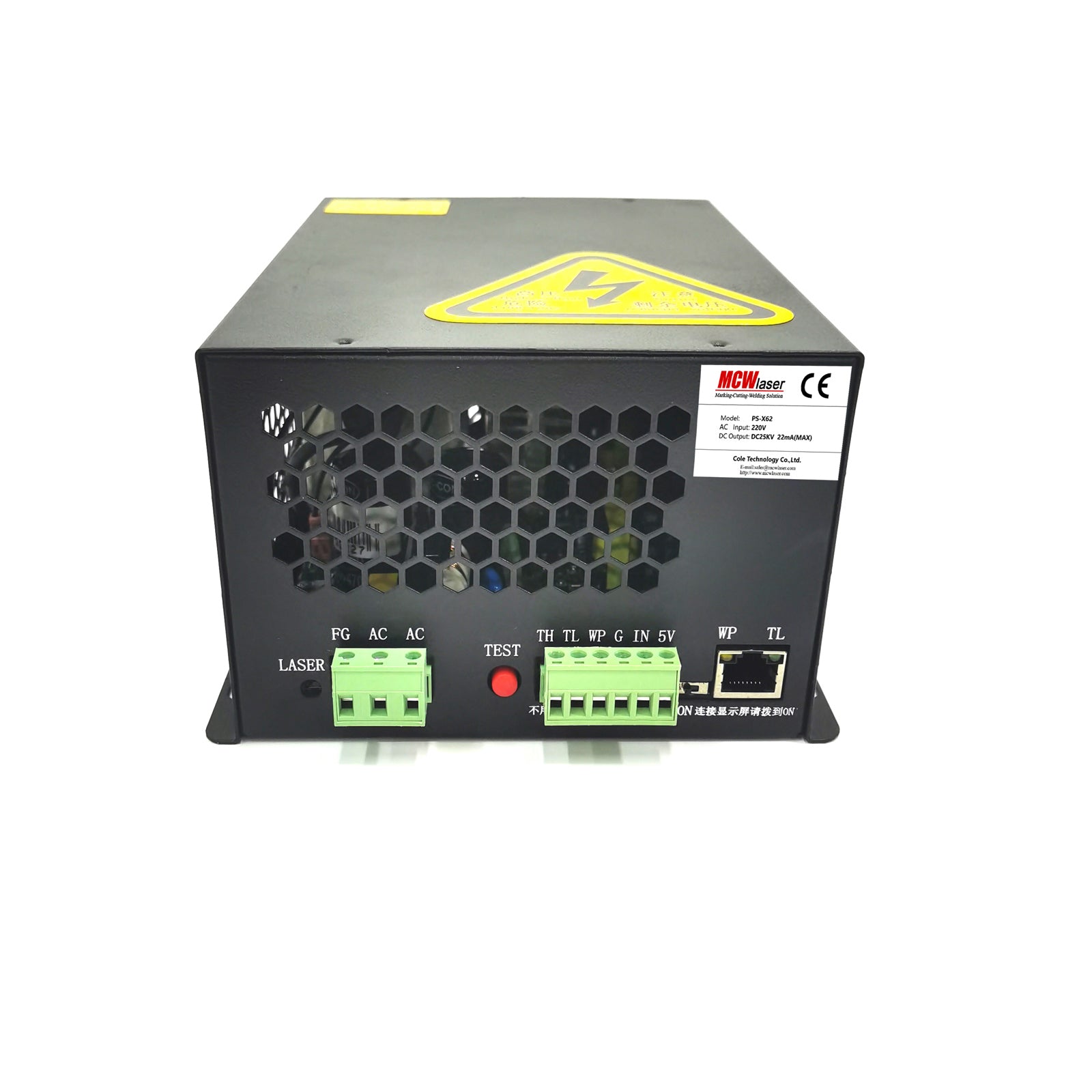

Product details
Application field
1. Laser engraving machine, laser cutting machine, laser marking machine, leather cutting machine, garment cutting machine, shoe pattern cutting machine, advertising engraving machine, leather engraving machine, glass engraving machine, laser bag opening machine, laser drilling machine, etc.
2. X/XA series laser power parameters.
Specification
| Type | X50/XA50 | X60/XA60 | X80/XA80 | X100/TA 100 | X150/XA 150 |
| Input voltage | AC220V (110V Can be customized) | ||||
| AC frequency | 47-440Hz | ||||
| Maximum input power |
250W | 300W | 450W | 600W | 750W |
| Maximum input current |
1A | 1.5A | 2.3A | 2.7A | 3.5A |
| Maximum output voltage |
DC 25KV | DC 25KV | DC 30KV | DC 35KV | DC 40KV |
| Maximum output current |
DC 20mA | DC 22mA | DC 25mA | DC 32mA | DC 35mA |
| effectiveness | 290% (Fully loaded) | ||||
| Work time | ≥10000hours | ||||
| responding speed | ≤1mS (The time from when the switch signal is given to when the output current rises to 90% of the set current ) |
||||
| Withstand voltage | Input--output, input -chassis: AC1500V 10mA 60s; output negative pole is connected to the chassis. | ||||
| Use envir onment | Working temperature (-10~40)°C, relative humidity: ≤90% | ||||
| Cooling form | Forced air cooling | ||||
| Supporting Laser tube Power |
30-50W | 50-60W | 60-80W | 80-100W | 130-150W |

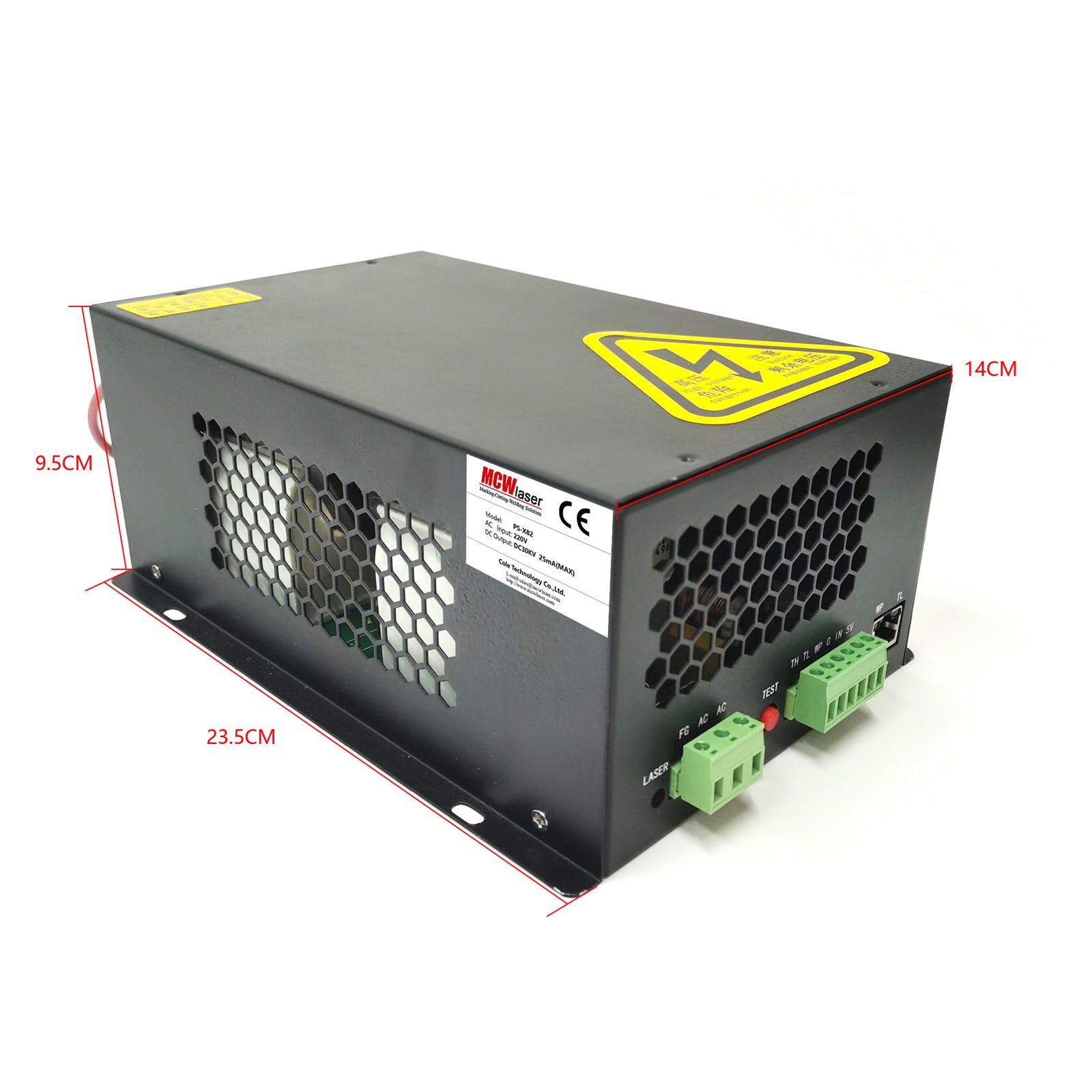

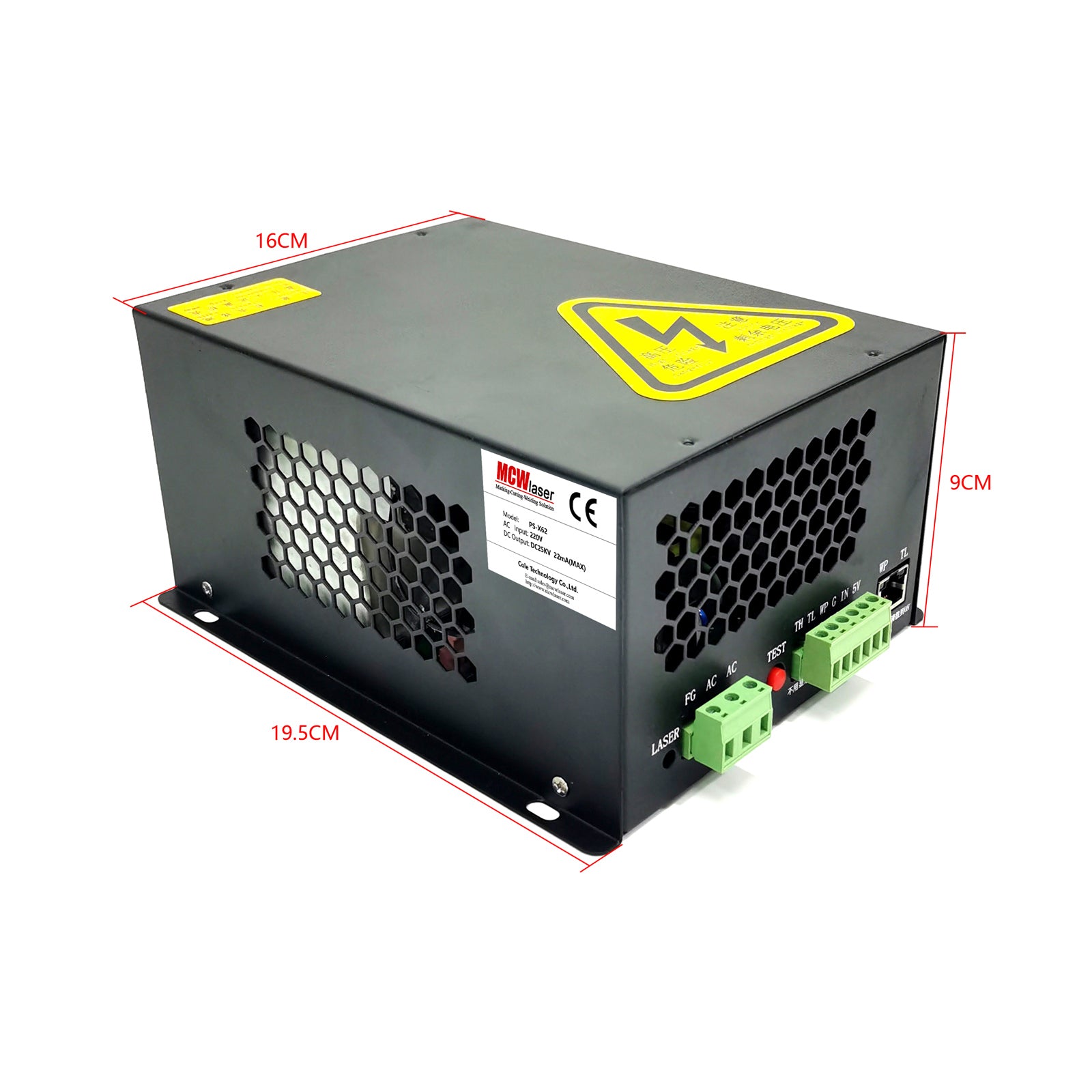

| SIZE L*W*H(mm) | 194*158*90 | 194*158*90 | 228*158*90 | 263*158*90 | 345*158*90 |
| Shell color | black | ||||
| net wei ght(KG) | 1.7 | 1.7 | 2.2 | 2.5 | 3.6 |
