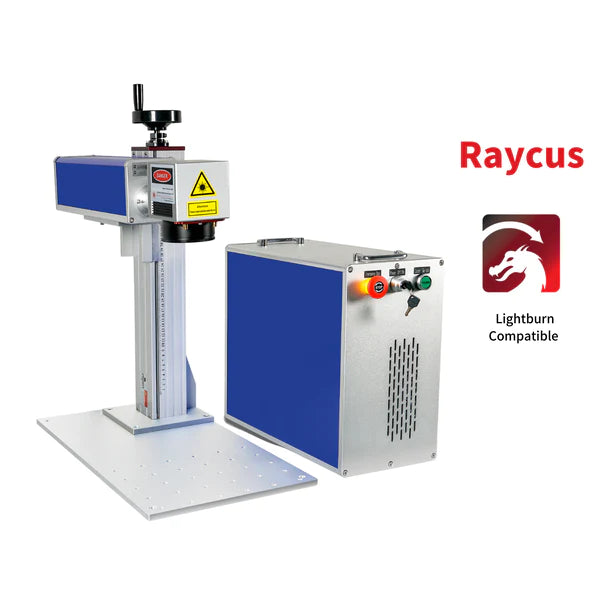

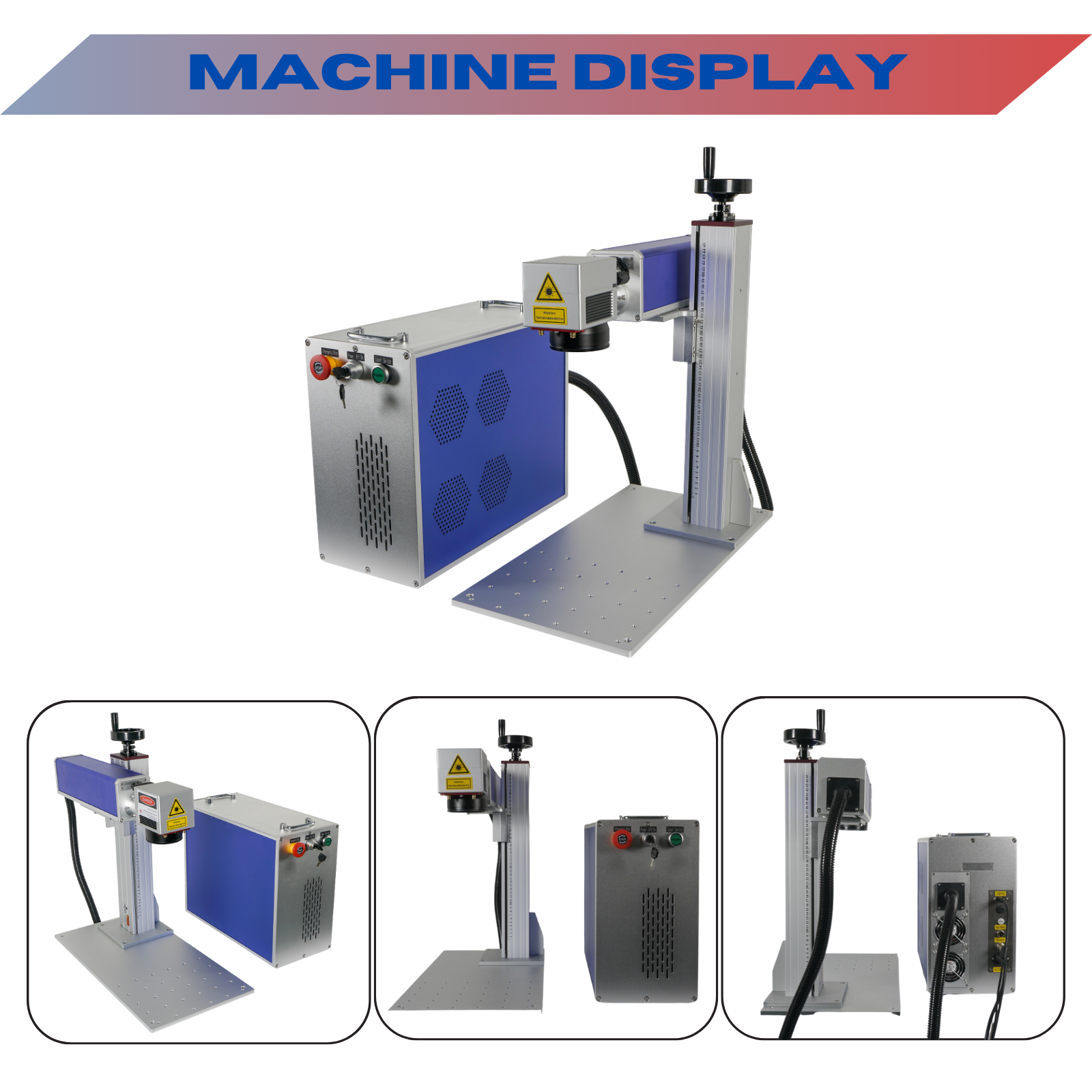

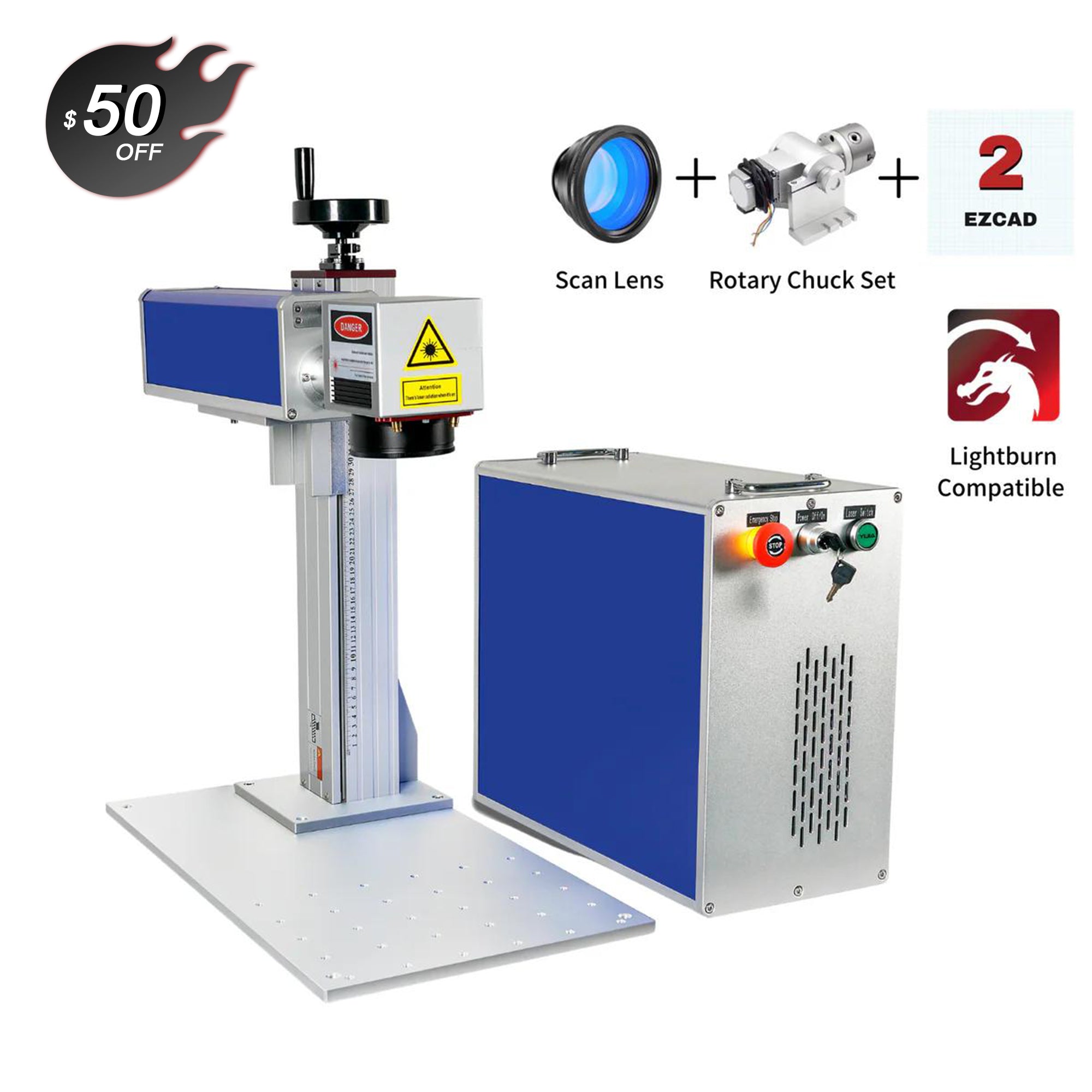

MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
Estimate shipping
Main Parmeter
Laser Power: 20W/30W/50W
Laser Source:Raycus
Frequency: 30-100kHz
Maximum Pulse Energy: 1.5mJ
Pulse Duration: 120-160ns
Lens: 220x220mm lens by default.
70x70mm/110x110mm/150x150mm/175x175mm/200x200mm/300x300mm optional
Wavelength: 1064nm
Rotary Axis: Three-jaw D80mm by default.
D69/D100mm/D125mm rotary axis optional
Marking Speed: ≤7m/s
Software: EZCad2, compatible with Lightburn;
Compatible System: Windows XP/Mista/Win7/Win8/Win10/Win11
Advantage
1. Raycus laser source has advanced beam quality
2. Reliable galvanometer marking speed up to 7m/s.
3. Latest upgraded EZCAD 2.0 Software (compatible with Lightburn).
4. Stable F-theta lens
5. Double red dot positioning can quickly find focus.
6. 2-year warranty.

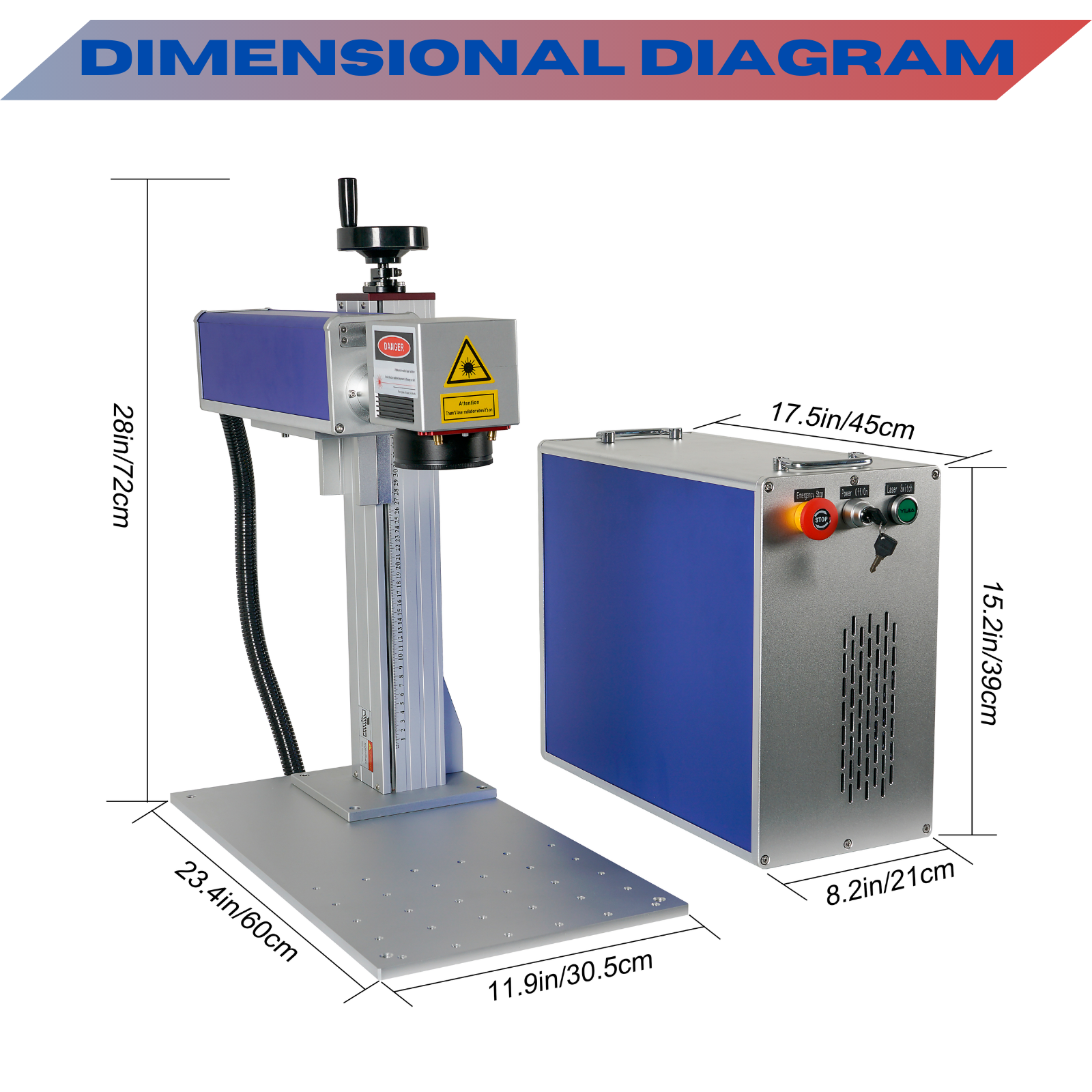

Size & Weight
*Machine Size:30.5x60x66cm/11.9x23.4x 26in(L×W×H）
*Net Weight:55Kg

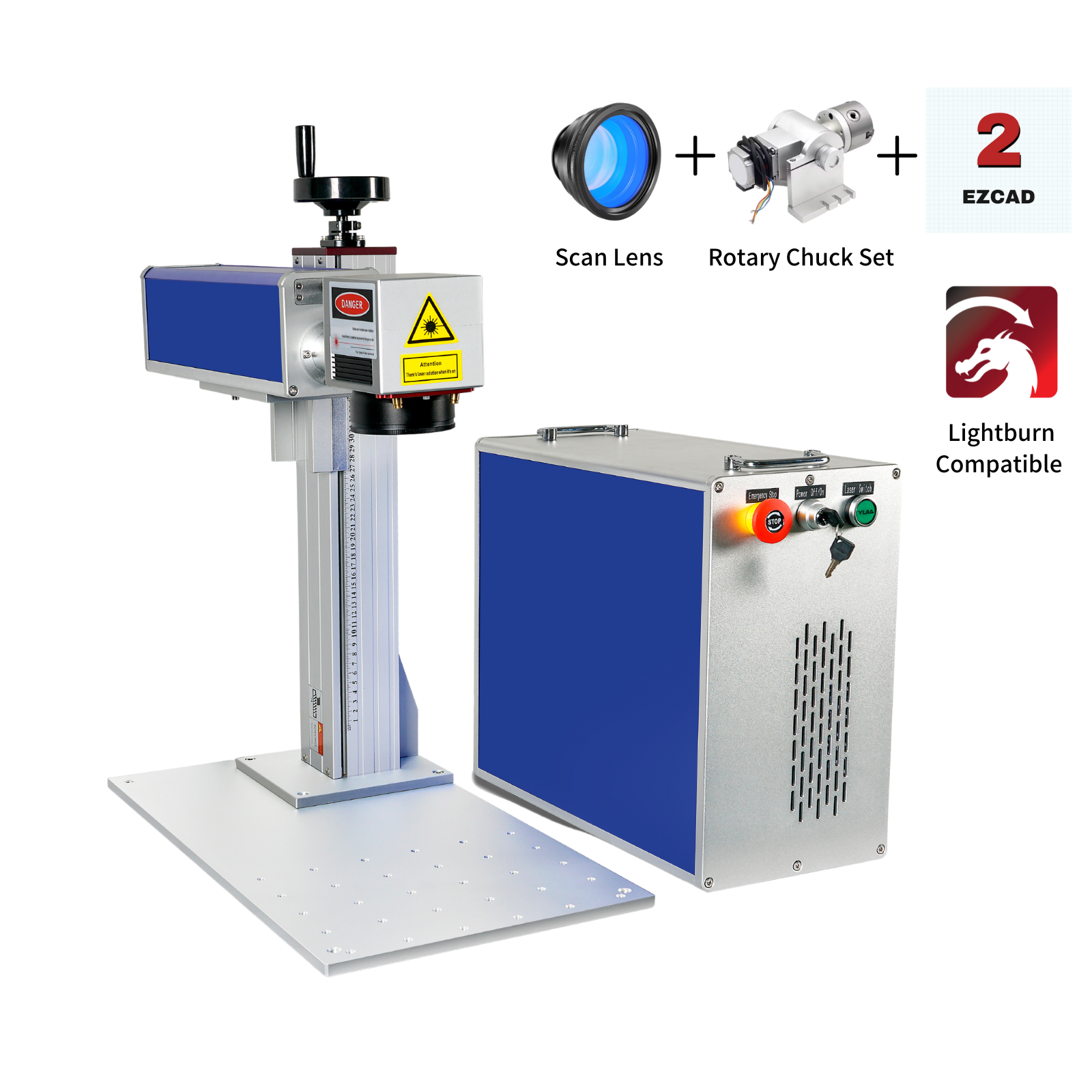

Package Include
1. Fiber Laser Marking Machine
2. Rotary Axis (D80 by default)
3. Laser Safety Goggles
4. Tape Measure
5. Foot Switch
6. Power Cable
7. USB Drive
8. USB Cable
9. Allen Wrench
10. Laptop Bracket
11. Color Aluminum Sheet
12. Cable
13.Lens(Marking Area 220x220mm by default)
Waranty
Worldwide Waranty 2 Years
Free replacement parts during warranty period
Certification
FDA Compliant
CE Certification
Application
It is mainly used in for the fine and deep marking process of metal and non-metal materials. Such as Stainless,Artificial,Aluminum,Gold,Silver，Brass,Titanium,Tungsten,Steel,Leather,Acrylic,Hard plastics,Brick，Granite,Marble,Tile,ABS,PVC,ceramic, stone etc.
It is widely used for marking jewellery, keyboards of cell phone, auto parts, electronic components,electronic appliance, communication apparatus, sanitary wares, buckles, kitchenware, sanitary equipment's, hardware tools, knife, glasses, clock, cooker, stainless steel products etc.
Manual Download
We want to clarify that all product information, parameters, policies, and offers published on our website (https://www.mcwlaser.net/) are only applicable to products and orders placed on our website. They do not apply to any products purchased from MCWlaser stores on Amazon, eBay, Aliexpress, or other platforms.
For products purchased from our store on other shopping platforms, please refer to the relevant information on the product page on that platform. Please note that we are not responsible for any orders placed on other platforms, and you should directly contact the relevant store on that platform to receive after-sale support.
Thank you for your understanding, and please don't hesitate to contact us if you have any questions or concerns.
Notification:
All warranty and after-sales service policies apply to the following orders
1. https://www.mcwlaser.net/
2. https://www.mcwlaser.com/
3. MCWlaser Amazon store (please log in to AMAZON and search for the "MCWlaser" brand to find our products)
4. MCWlaser eBay store (please log in to EBAY and search for the "MCWlaser" brand to find our products)
Part I. Laser Machine
At MCWlaser, we provide 2-year warranty and comprehensive warranty and maintenance for laser engraving/cutting machines, fiber marking machines, laser cleaning machines, and laser welding machine, as well as permanent technical support.
The fiber laser (i.e. laser source) is warranted for two (2) years and all other accessories of the machine are warranted for one (1) year. Consumables are not covered by the warranty.
This limited warranty applies only to products distributed and/or sold by MCWlaser to the original purchaser.
During your warranty period, you can rely on our remote technical support to troubleshoot any problems and guide you through simple fixes. If our technical team determines that the failure is due to a defective part, MCWlaser will repair or replace the accessory free of charge.
Warranty Conditions
1. Any after-sales additions or modifications are not covered by this warranty. The owner of the laser system is responsible for any service and repairs not covered by this warranty.
2. The warranty only covers normal use of the laser machine. MCWlaser will not be liable under this warranty for any damage or defect caused by:
*Irresponsible use, abuse, neglect, accidental damage, improper return shipping or installation
1.Disasters such as fire, flood, lightning, or acts of God
2.Inadequacy or interruption of electrical service, improper voltage conditions, blown fuses, or other similar damages
3.Service or alteration by anyone other than an authorized MCWlaser representative
4.Usage of components or accessories not approved by MCWlaser
5.Tampering, altering, defacing, or removing the product serial number will void this warranty.
*Damages incurred through irresponsible use may include but are not limited to:
1.Failure to turn on or use clean water within the chiller or water pump
2.Failure to clean optical mirrors and lenses
3.Failure to clean or lube guide rails with lubricant oil
4.Failure to remove or clean debris from the collection tray
5.Failure to properly store the laser in a properly conditioned environment.
MCWlaser is not responsible for any software programs, data or information stored on any media or for any part of any product returned to MCWlaser for repair.
This warranty does not cover any third party software not purchased from MCWlaser or virus related issues. MCWlaser is not responsible for loss of data or time, even in the event of hardware failure. It is the customer's responsibility to back up any data for their own protection. MCWlaser is not responsible for any loss of work ("Downtime") caused by products requiring repair.
The warranty is not transferable if the customer resells the machine. International shipping charges and/or customs fees associated with fulfilling the warranty replacement item are the customer's responsibility if damage or functional defect occurs due to customer's improper operation of the machine.
MCWlaser reserves the right to refuse the purchase of an extended warranty at its sole discretion.
Post Warranty Support and Repairs:
MCWlaser provides free lifetime technical support to buyers through email, phone, instant messaging tools, and remote assistance. On-site maintenance (if required) is optional and requires a fee. After the warranty period, replacement parts and shipping costs will be borne by the customer. MCWlaser will provide necessary spare parts and repair parts.
PART II. Accessories
Fragile items: such as laser tubes. If the product is damaged during transportation or the product is defective, there is no need to return it. We will reissue a new one after verification.
If the product is brand new and unused due to the wrong purchase, it is supported to be returned or exchanged within 7 days after receipt, and the buyer needs to bear the risk of insurance and transportation damage.
Customized products: such as customized size honeycomb panels, etc., do not support returns or exchanges.
Other products: Within 30 days after receipt, they are brand new, unused, and are available for sale. Returns and exchanges are supported, and the buyer needs to bear the shipping costs.
Please see the list below for warranty period:
| PRODUCT | TYPE | WARRANTY/MONTH |
| LASER MARKING MACHINE | / | 24 |
| LASER CLEANING MACHINE | / | 24 |
| LASER WELDING MACHINE | / | 24 |
| LASER CUTTING MACHINE | / | 24 |
| LASER TUBE | MCW SERIES 40W,50W | 3 |
| MCW SERIES 60W | 6 | |
| MCW SERIES 80W-180W | 10 | |
| RECI SERIES W1,W2,W4 | 18 | |
| RECI SERIES W6,W8 | 12 | |
| LASER POWER SUPPLY | H,DY,Z,W,MYJG SERIES | 12 |
| LASER CHILLER | / | 24 |
| SMOKE PURIFIER | / | 24 |
| LASER GOGGLES | / | 12 |
Technical Support:
Email: service@mcwlaser.com
Whatsapp/Wechat/Telephone: +86 18121236578
It is recommended to send us an email first about your product problems, and we will assign relevant technical personnel according to different problems.
The Raycus Fiber Laser Engraver Marking Machine marks most metals and some non-metals. This advanced machine boasts a red light positioning focus finder, ensuring pinpoint accuracy and efficient setup by guiding the laser's focal point with precision. Powered by a high-performance galvanometer system, it delivers rapid and accurate results, with an astounding marking speed of up to 7000mm/s. Utilizing the user-friendly Ezcad2 software, operators can easily customize and create intricate designs, barcodes, QR codes, logos, and alphanumeric characters, adding a touch of personalization to their products. What's more, the Raycus Fiber Laser Engraver comes with a 2-year warranty, providing peace of mind and demonstrating the manufacturer's commitment to quality and reliability. Whether for industrial manufacturing, electronics, jewelry, or medical devices, this machine is an invaluable tool for businesses seeking efficiency, precision, and durability in their marking and engraving operations.
Features

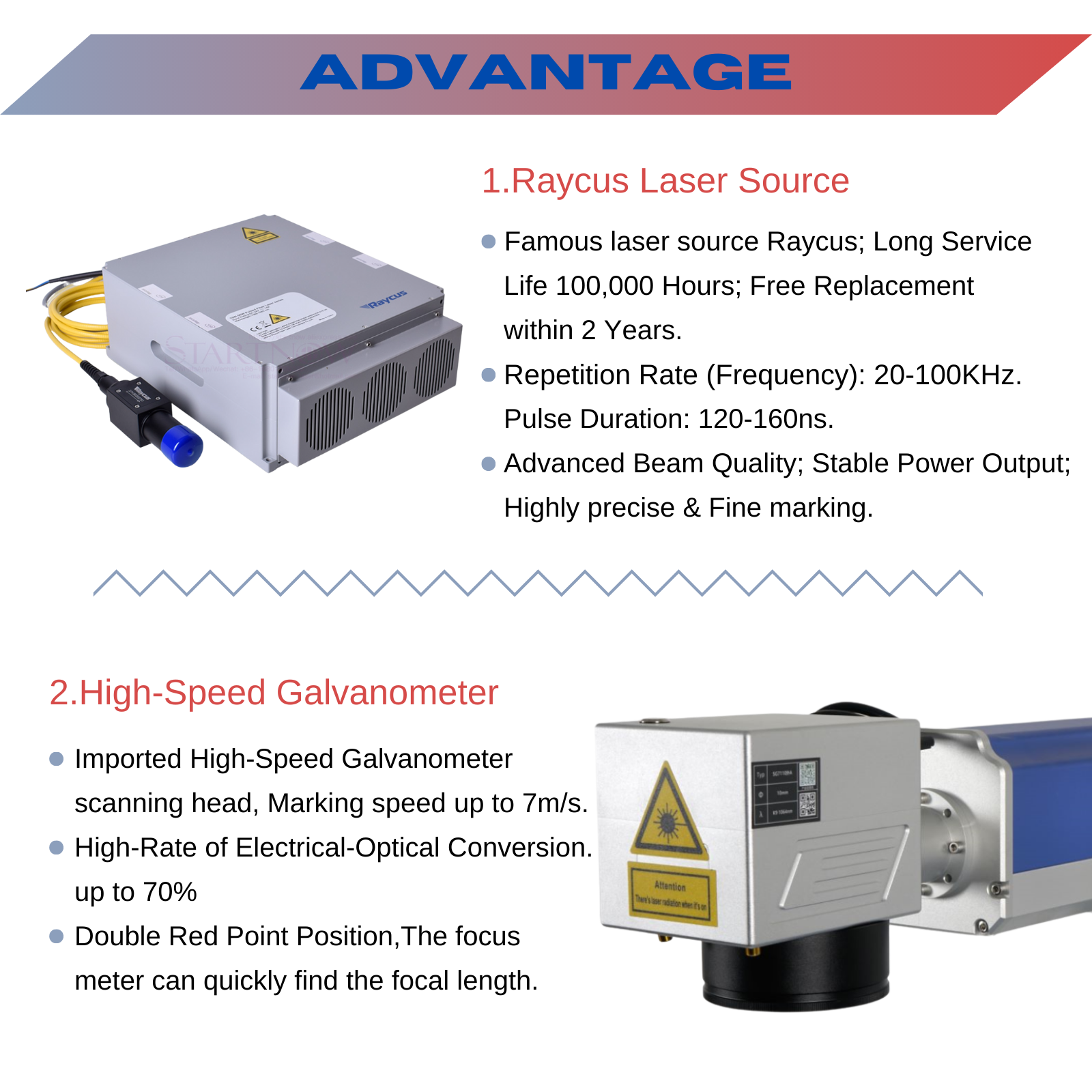

【Raycus Laser Source】
The Raycus fiber laser source provides high-quality optical design, high rate of electrical-optical conversion, and higher efficiency and has a long service life of over 100,000 hours. It can achieve extremely precise and detailed engraving. Marking speed up to 7m/s.Free replacement within 2 years.

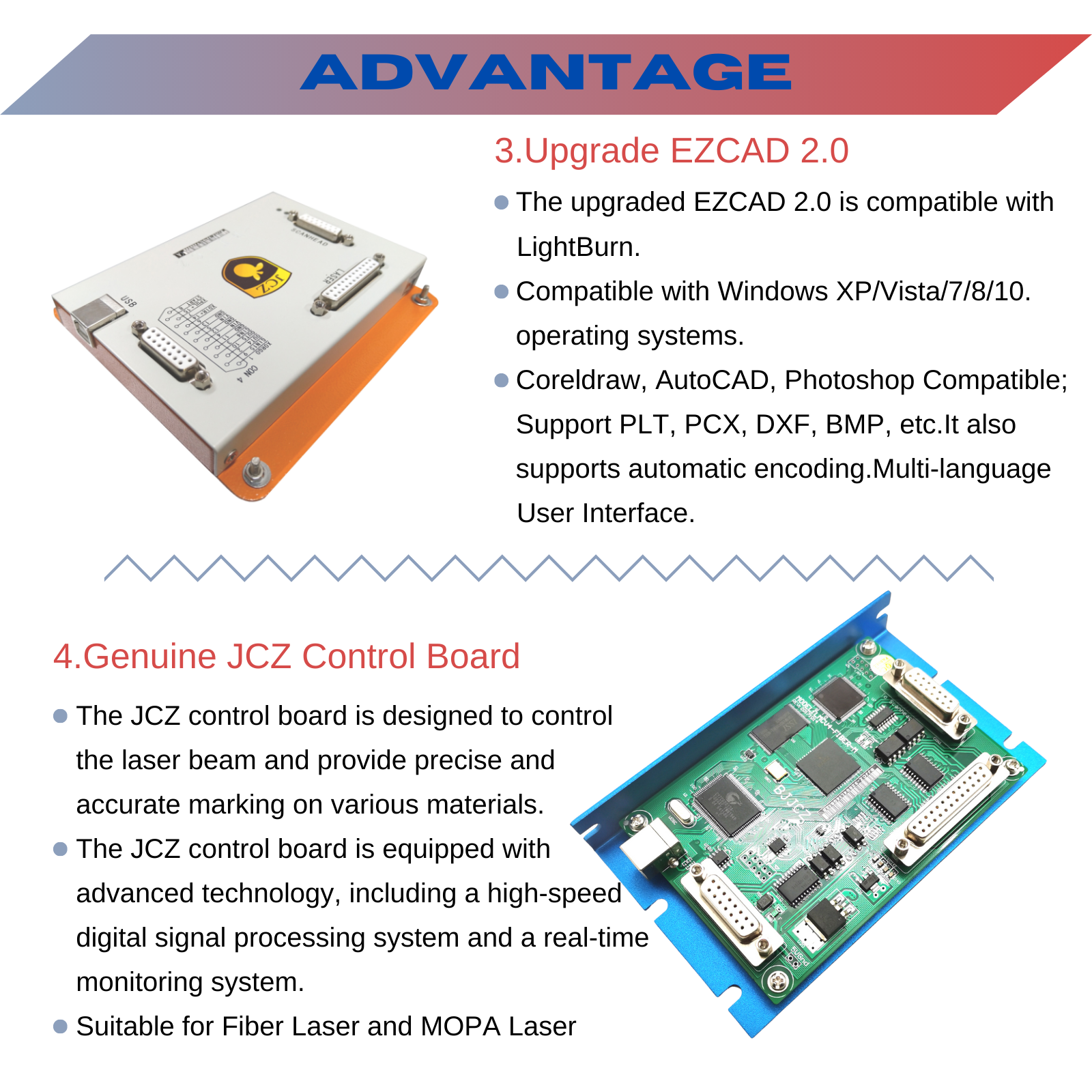

【JCZ Control Board】
The JCZ control board is designed to control the laser beam and provide precise and accurate marking on various materials. including a high-speed digital signal processing system and a real-time monitoring system.
【Double Red Dot Positioning System】
The red point positioning system can quickly find the focal length without any tools.
Correct Working Distance; Easy to work with.
【Reliable Galvanometer】
The high-speed galvanometer scanning head greatly reduces the delay .Outstanding stability and fast speed up to 7m/s (275.6in/s)
Good running stability, high positioning accuracy, fast marking speed, and strong anti-interference ability.
【Stable F-theta Lens】
F-theta lenses offer a consistent focus across the entire scanning area, ensuring uniformity in laser processing.
The flat field of focus allows for faster scanning speeds. Does not require complex adjustments as it moves across the work surface.
An industry-standard M85 threading on all F-theta lenses allows for easy mounting and simple retrofitting of OEM systems.
【EZCAD2.0 Software】
The newest upgraded EZCAD2.0.Compatible with Lightburn.Win7/8/10/11/XP Compatible; Coreldraw, AutoCAD, Photoshop-compatible.Supports PLT, PCX, DXF, BMP, etc. Multi-language interface, such as English, Spanish, German, French, Italian, Japanese, etc.; Easy to use.

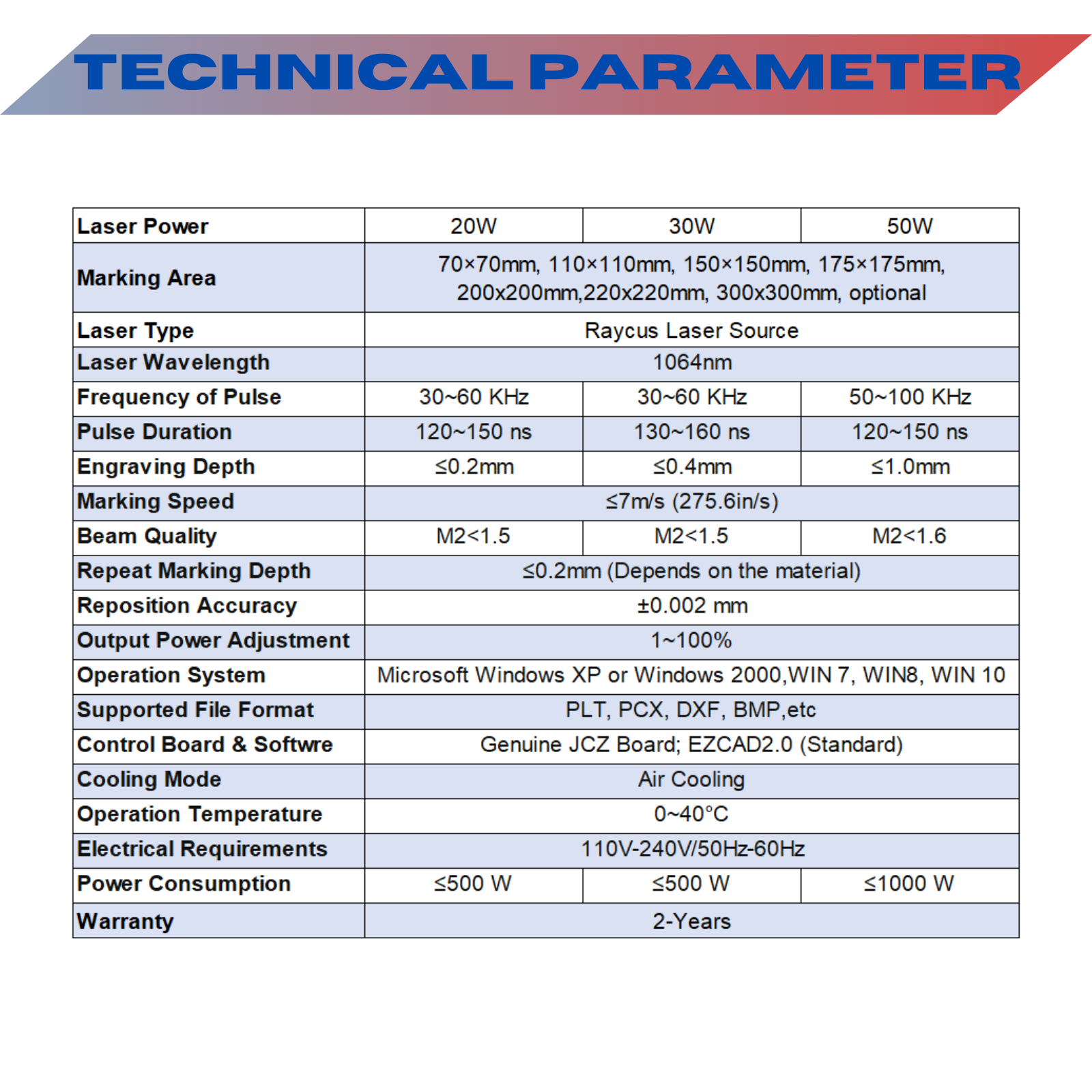

Technical Parameter
| Laser Power | 20W | 30W | 50W |
|---|---|---|---|
| Marking Area | 220x220mm by default,70x70mm110×110mm150×150mm175×175mm 200x200mm,300x300mm,optional |
||
| Laser Type | Raycus Laser Source | ||
| Laser Wavelength | 1064nm | ||
| Frequency of Pulse | 30~60 KHz | 30~60 KHz | 50~100 KHz |
| Pulse Duration | 120~150 ns | 130~160 ns | 120~150 ns |
| Engraving Depth | ≤0.2mm | ≤0.4mm | ≤1.0mm |
| Marking Speed | ≤7m/s(275.6in/s) | ||
| Beam Quality | M2<1.5 | M2<1.5 | M2<1.6 |
| Repeat Marking Depth | ≤0.2mm(Depends on the material) | ||
| Reposition Accuracy | 土0.002 mm | ||
| output Power Adjustment | 1~100% | ||
| peration System | Microsoft Windows XP or Windows 2000,WIN7,WIN8,WIN 10,WIN 11 | ||
| Supported File Format | PLT,PCX,DXF,BMP,etc | ||
| ontrol Board & Softwre | Genuine JCZBoard;EzCAD2.0(Standard) | ||
| cooling Mode | Air Cooling | ||
| peration Temperature | 0~40°℃ | ||
| Electrical Requirements | 110V-240V/50Hz-60Hz | ||
| Power Consumption | <500W | <500W | <1000W |
| Warranty | 2-Years | ||
Packing List
Application
Both for Industry and business; Mainly used for metal material (typical: Steel, stainless steel, silver, copper, alloy, aluminum, etc); part non-metal material (typical: ABS, PVC, PES, plastic, ceramic, leather, etc. )
