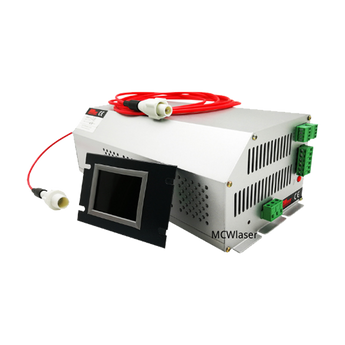

Z80 Z100 Z150 CO2 Laser Power Supply Z Series For 80W 100W 130W 150W 180W CO2 Laser Tube
Parameter
|
Model |
z80 |
z100 |
z150 |
|
|
|
AcVoltage |
90-250V |
||
|
Ac Frequency |
47-440Hz |
|||
|
Max Power |
50ow |
70ow |
9oow |
|
|
Max current |
6A |
8A |
10A |
|
|
output |
Max Dc Voltage |
40KV |
45KV |
55KV |
|
Max Dc current |
28mA |
32mA |
38mA |
|
|
Effciency |
≥90%(full load condition) |
|||
|
MTBF |
z10,000 hours |
|||
|
Response speed |
≤1ms(The time from when the switch signal is launched to when the ouput |
|||
|
switch Control Mode |
TTL |
|||
|
Power control Mode |
PWM(>20KHz)o-5v or o-3.3V analog |
|||
|
communication Mode |
Special Serial Port |
|||
|
Withstand Voltage |
lnpot-Output , Input-Case:AC1500V10mA 6os |
|||
|
cooling Method |
Fan Cooling |
|||
|
weight |
2.15kg |
2.45kg |
3.2kg |
|
|
Dimension L*WH(mm) |
235mm*144mm*104mm |
278mm*144mm*104mm |
330mm*144mm*104mm |
|
Feature
- Built-in intelligence: The Builtincontrol allows seamless communication with motion controllers and up to 32 power supplies through cascade connection. The controller panel displays the working conditions of power supplies, making it easy for users to monitor and identify faults.
- Easy maintenance: The controller panel shows the working condition of the power supply, enabling users to identify faults independently, resulting in easy maintenance.
- Multi-functional LCD screen: The LCD screen displays the information of two power supplies, making it user-friendly for multi-head machines.
- Open circuit protection: The power supply automatically activates protection when there is an open circuit or bad connection at the high voltage end, effectively preventing high voltage arcs.
- High voltage discharge function: The power supply has a high voltage discharge function, eliminating residual voltage during power-off and ensuring safety.
- Globally universal: The AC90-250V input voltage range makes it compatible worldwide.
- 12-month warranty: Enjoy peace of mind with our 12-month warranty.
Application
- t was recommended for use with MCWlaser8OW(M80 model) and below 8OW /100W(M100Mode)/130W and 150W(M130 and M150 Mode) CO2 laser tube.
- lt can also replace or work with the other brand 80W and below 80W / 90W-120W /130W-150W CO2 laser tube.
